WalkSnail Avatar HD Mini 1s Lite Kit HD Digital Camera

  • $97.00
  • Save $6



WalkSnail Avatar HD Mini 1s Lite Kit HD Digital Camera

Specification

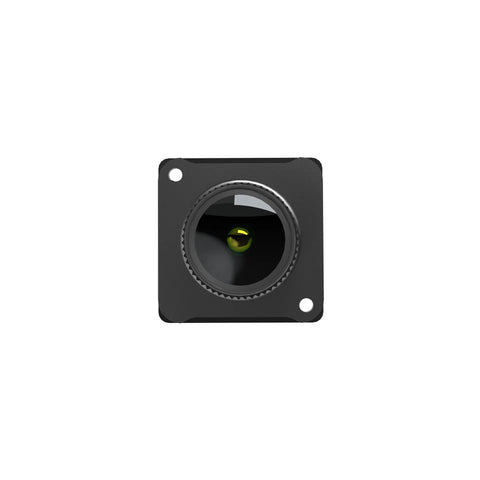

Camera

Model    Avatar lite camera
Image Sensor  1/2.7”1nch
Resolution   1080P/60fps,720P/120fps,720P/60fps
Ratio       16/9  4/3
Lens  2.1mm
FOV     170°
Aperture     F2.0
Shutter Rolling  Rolling shutter
Min.Illumination   0.001Lux
Weight  1.8g
Dimensions  14*14*16mm

VTX

Model Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)

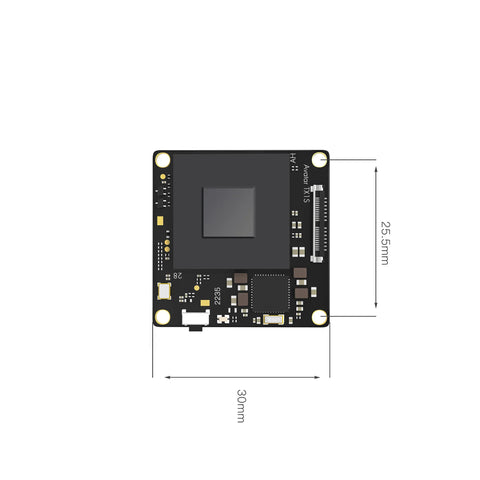

Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G
Recording 1080p/720p
Weight 5.1g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 3.1V-5V
Supported FC System Betaflight
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average delay 22ms
Antenna IPEX

1s lite antenna

Polarization  Linear
Frequency range 5600-5900MHz
Gain 1.6 dbi
VSWR ≤1.5
Input Impedance 50Ω
Interface IPEX-1
Size R 5mm,L 70mm
Weight 0.5g

Packing List

Avatar Mini 1S lite KIT  X1
4 Pin USB Cable X1
4 Pin Power Cable X1
1.4×8mm Screws  X4
1.4×10mm Screws   X2
M2 Anti-vibration Rubber Dampers *6mm X4
