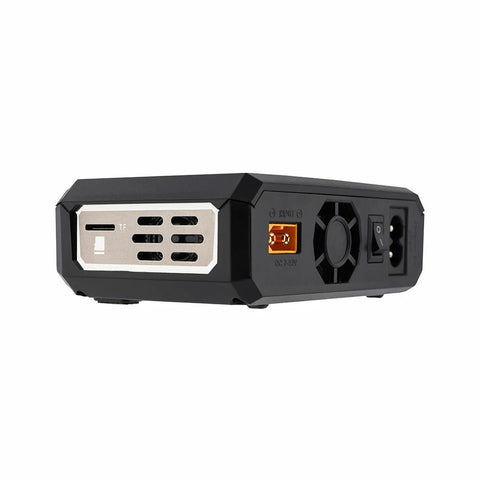

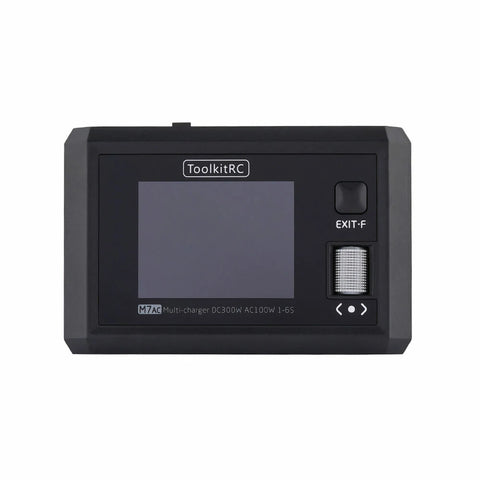

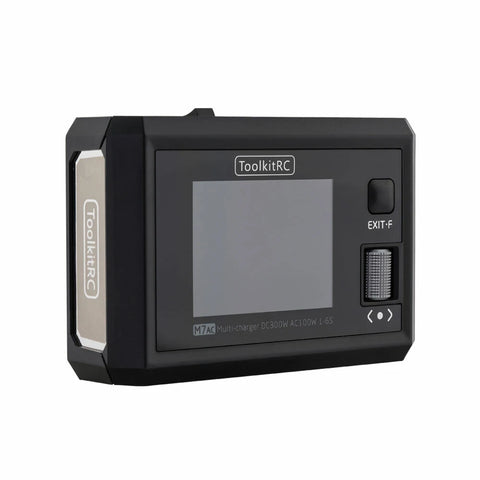

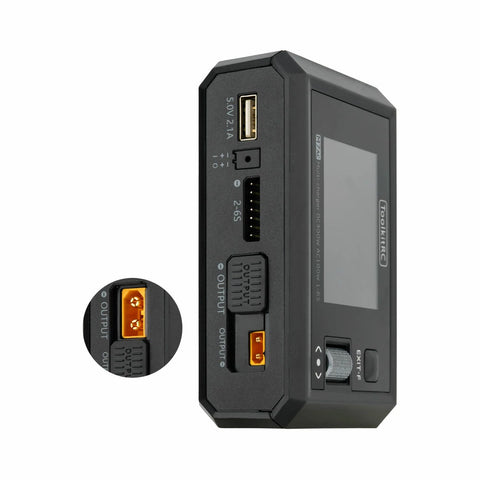

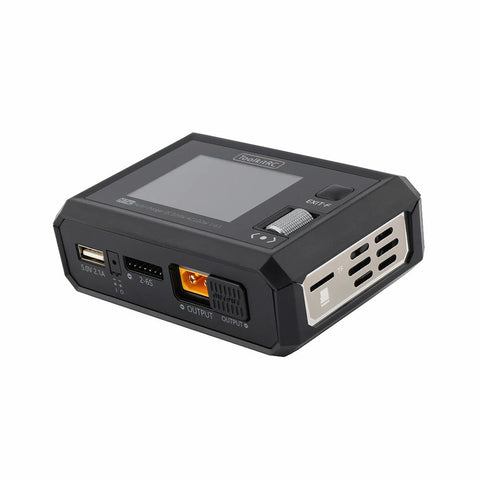

ToolKitRC M7AC Charger Discharger 1-6S Battery 300W 15A AC DC With XT30 XT60 AU Plug
Specification:
- input voltage: AC 100-240V MAX 100W 1.5A / DC 7.0-28.0V @MAX 20A
- battery type: Lipo LiHV LiFe Lion LTO@1-6S NiMh @1-16S Pb @1-10S
- balance current: 800mA @ 4.2V
- charging power: 300W @MAX 15A
- discharge power: 300W @MAX 15A Recycle mode / 15W@3A Normal mode
- USBA: 10W@5.0V or Upgrade
Measurer:
- PWM: 880-2200us @ 20-400Hz
- PPM: 880-2200us * 8CH @ 20-50Hz
- SBUS: 880-2200us * 16CH @ 20-100Hz
- voltage: 1.0-5.0V @ 1-6S
- Internal resistance: 0.1 mR-99mR @ 1-6S
- ESC: 300W @ 15A
General:
- product size: 112*73*38mm
- product weight: 245g
- packing size: 144*125*43mm
- packaging weight: 380g
- LCD: IPS 2.4 inch LCD 320*240 resolution
- TF Card: 128MB-16GB
Output:
- PWM: 500-2500us @ 20-1000Hz
- PPM: 880-2200us * 8CH @ 20-50Hz
- SBUS: 880-2200us * 16CH @ 20-100Hz
- power supply: 1.0-28.0V @0.5-15A mode:CC CV
- Overcurrent response: <5ms
Packaging included:
- 1x ToolkitRC M7AC Charger AU Plug
