Matek SAM-M10Q GPS Module GNSS Gallileo GLONASS BeiDou
The Mateksys GNSS SAM-M10Q GPS Module - Gallileo/GLONASS/BeiDou uses a multi-constellation GNSS module powered by u-blox SAM-M10Q-00B. The SAM-M10Q features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.
The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.
Features
- The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size
- SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou)
- The omnidirectional antenna radiation pattern increases flexibility for device installation.
- The high number of visible satellites enables the receiver to select the best signals
- Multi-constellation GNSS module powered by u-blox SAM-M10Q-00B
- U-blox Super-S (Super-Signal) technology offers great RF sensitivity
- Exceptional sensitivity and acquisition time for all L1 GNSS signals
- U-blox M10 standard precision GNSS platform
Specifications
- GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
- Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
- GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
- JST-GH-4P connector (SM04B-GHS-TB). 1.27mm pitch

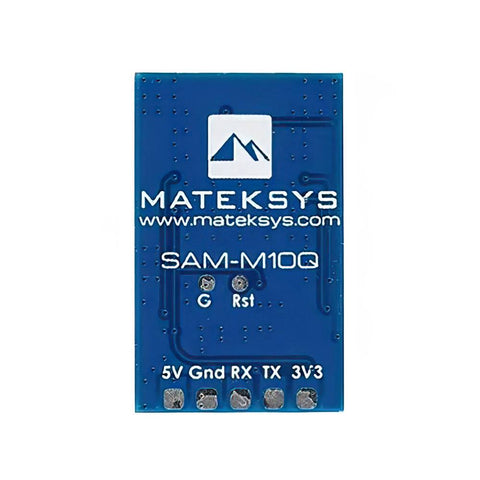

- UART(TX, RX) interface for GNSS SAM-M10Q-00B
- Input voltage range: 4~9V (5V pad/pin)
- Operating Temperatures: -20~80 °C
- No Magnetic Compass built-in
- UART baudrate: 9600 default

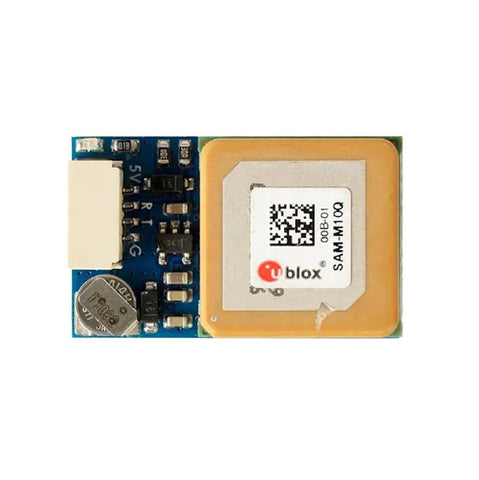

- Patch antenna 15*15*4mm
- Power consumption: 10mA

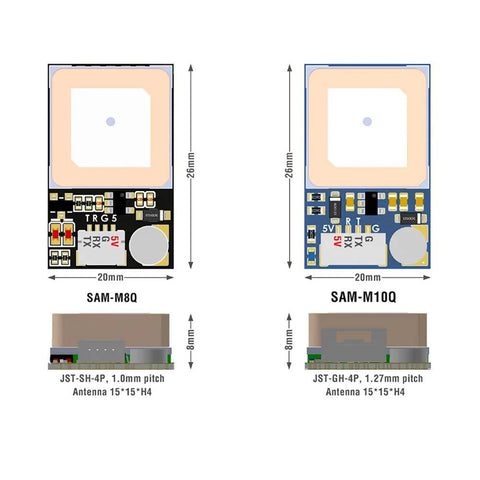

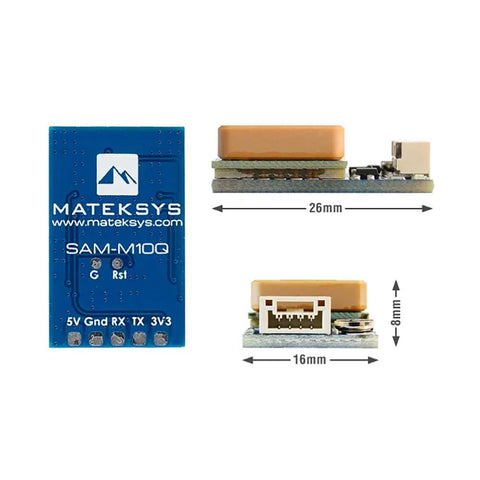

- 26mm*16mm*8mm
- 7.5g
Includes
- 1x Mateksys GNSS SAM-M10Q GPS Module - Gallileo/GLONASS/BeiDou

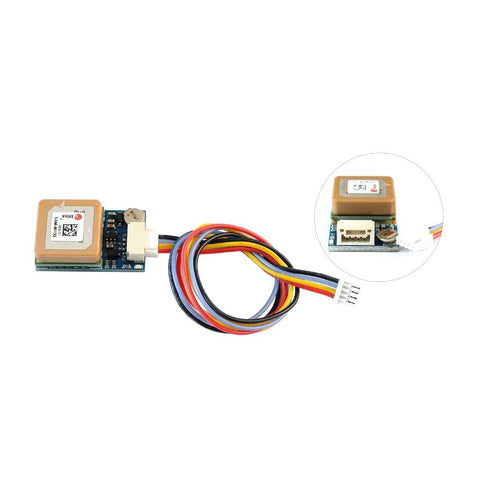

- 1x JST-GH-4P to JST-GH-4P 20cm silicone wire
