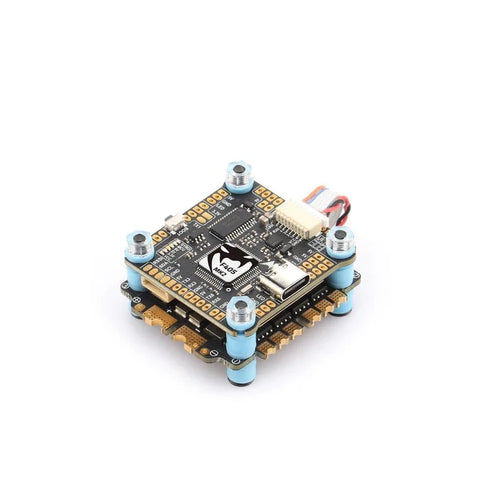

Diatone Mamba Stack F405 MK2 V2 DJI O3 Flight Controller + BLS 55A 3-6S ESC 30.5x30.5mm

Description

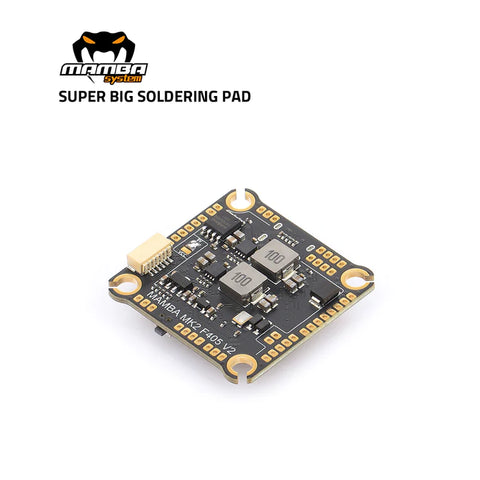

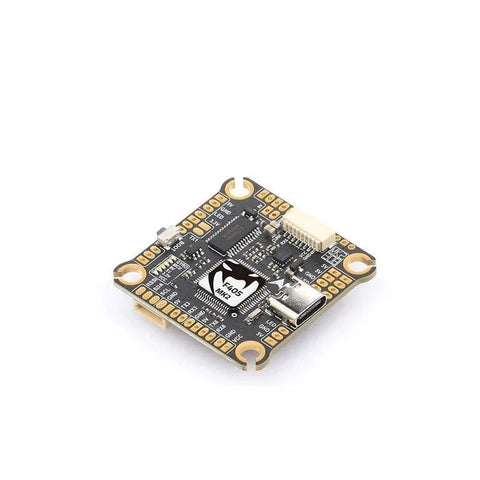

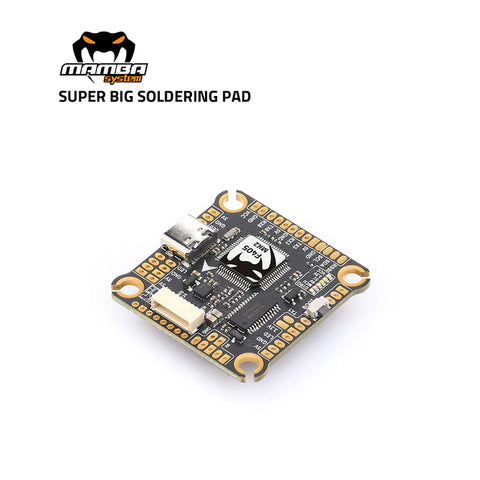

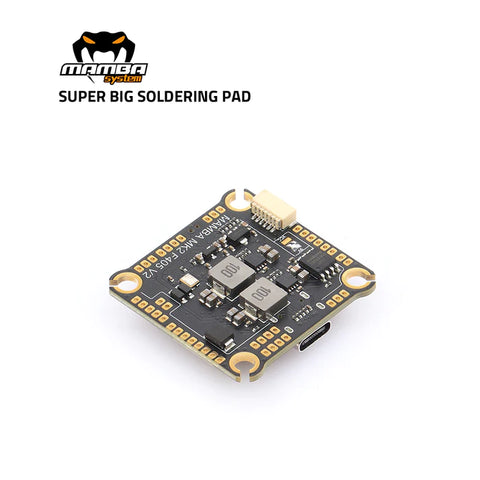

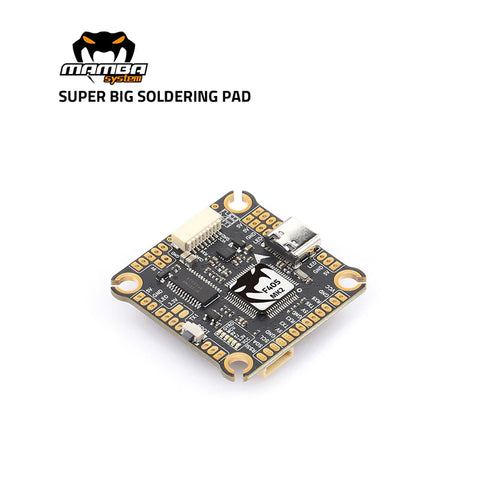

MAMBA F405MK2 V2 Flight Controller ICM42688P

  • MCU: 168MHz STM32F405
  • GYRO: ICM-42688-P
  • Target : FURYF4OSD
  • OSD: Yes
  • Blacbox: 16M Flash Memory
  • Barometer: No
  • Uarts: 3 Set
  • I2C: Yes
  • F.Port: No
  • RSSI: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 4 Set
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller : BF LED
  • AIR UNIT Port: Yes
  • WIFI: No
  • VTX Switch: No
  • Receiver Protection: Yes
  • BEC Protection: Yes
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 3A& 9V 3A
  • Input: 3~6S Lipo (12.6~25.2V)
  • Mounting size: 30.5mm/M3

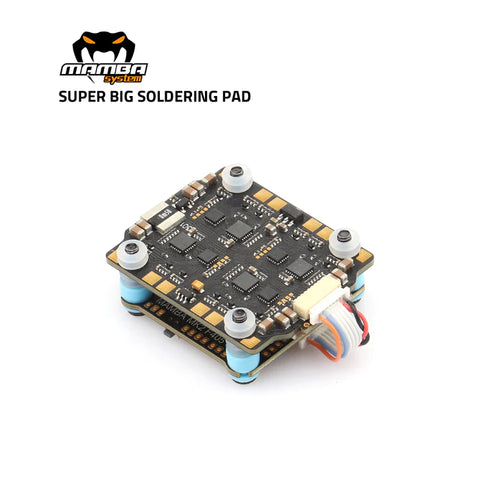

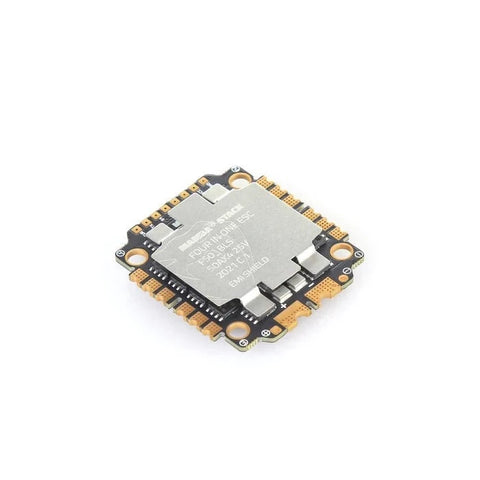

ESC Specifications

MAMBA F55_BLS

  • Input voltage: 3~6S Lipo (12.6V~25.2V)
  • Continue current:55A×4
  • Burst current 55A (10S)
  • BEC: No
  • Target : BLHeli_S CH40
  • SOFT: Dshot300/600
  • TVS Protection: No
  • MOUNTING: 30.5mm/M3
