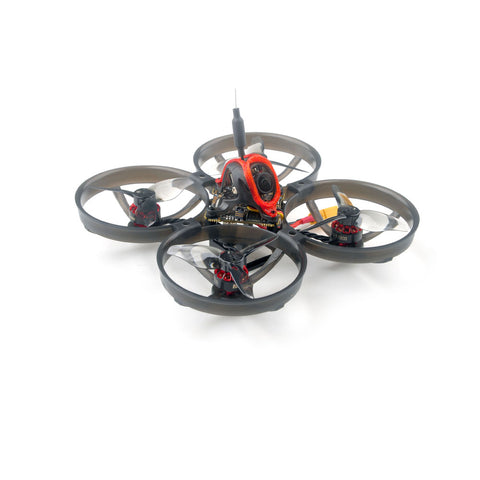

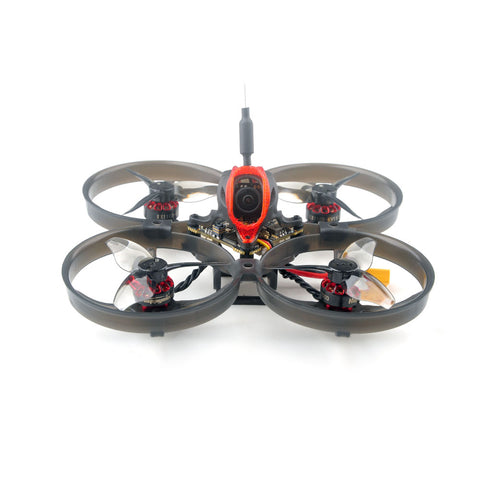

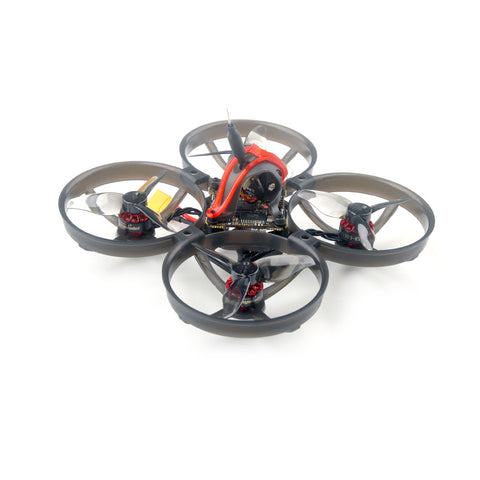

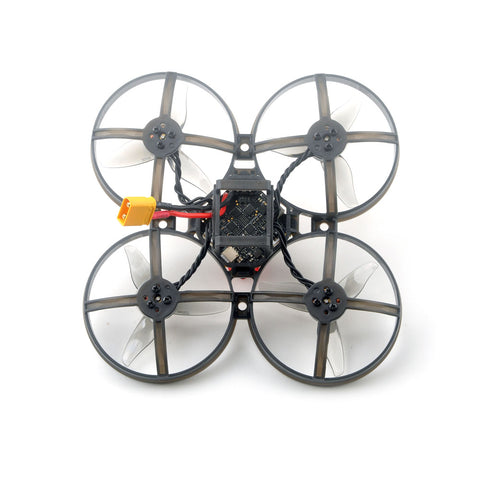

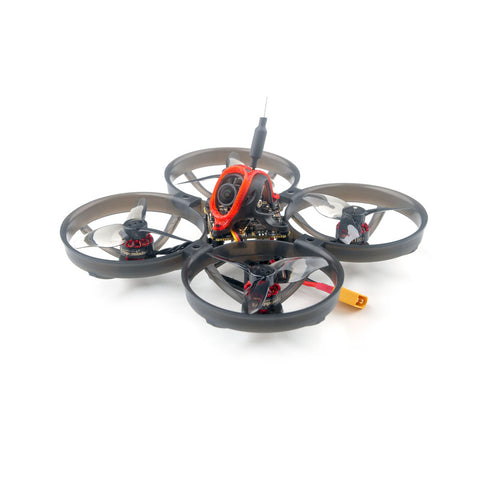

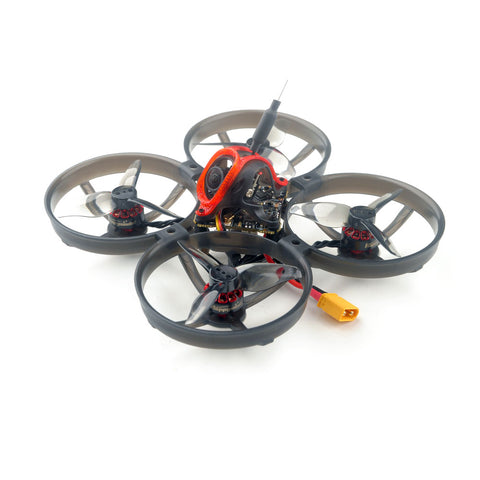

HappyModel Mobula8 Micro 85mm FPV 1-2S TinyWhoop Drone BNF ELRS
Please note that if your ELRS Radio Controller is V3, the BetaFlight Target Firmware on the drone need to be upgraded for ELRS 3.0 Binding purpose, please find the firmware and CLI Dump file from the link below:
HappyModel Mobula8 ELRS 3.0 Firmware + CLI Dump
You will need to FLASH the firmware and APPLY the CLI Dump file to the drone.
Are you tired of the power performance of the 1S whoop you own? Do you want more power to ripping and roaring in your backyard? Yes, here comes Mobula8, which is Happymodel’s first attempt on 85mm frame. It comes with X12 series flight controller, EX1103 KV11000 motor and Gemfan Hurricane 2023 tri-blade propeller, which has excellent power performance and extremely smooth flight.
Features:
- X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
- VTX Power up to 400mw
- ELRS V2.0 (Default), provide firmware to support ELRS V3.0
- EX1103 KV110000 motors
- CaddxFPV Ant FPV camera
- Smooth and powerful
- Compatible for 1S-2S Lipo/LIHV battery
- Recommend 2S 450mah/550mah/650mah battery (Not include)
Specifications:
- Brand Name: Happymodel
- Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
- Wheelbase: 85mm
- Size: 120mm*120mm*50mm

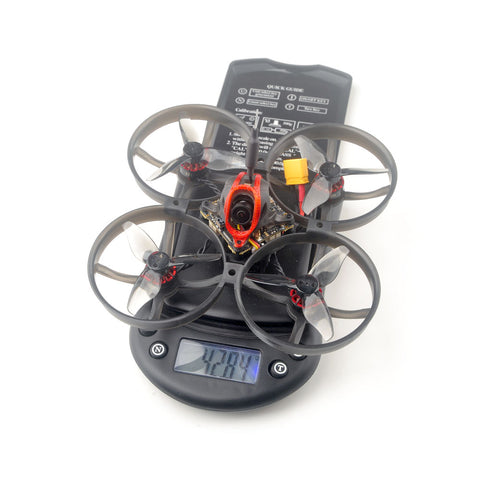

- Weight: 43g
Receiver option:
- 2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)
- SPI Frsky D8/D16 not compatible with EMAX E6 radio
Package includes:
| Item Name | Qty |
| Mobula8 Frame | 1 |
| Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver | 1 |
| Option2: X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver | |
| EX1103 KV11000 brushless motor | 4 |
| Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) | 1 |
| Caddx ANT 1200TVL Camera | 1 |
| Onboard 5.8G Openvtx 0mw~400mw VTX | 1 |
| Canopy for 14mmx14mm camera | 1 |
| Screw driver | 1 |
Spare parts specifications:
| Motor | Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight controller | X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689 or ICM42688P(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16 Built-in voltage detection Built-in current sensor |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Firmware target: Z_H_30 Default protocol: DSHOT300 Support Bluejay firmware |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware Could flash FC firmware to support ExpressLRS v3.0 TX module |
| Onboard SPI Frsky D8/D16 receiver Version | SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support |
| Onboard 5.8g OPENVTX | Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) |
| Caddx ANT 1200tvl camera | Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Weight: 2g (N.W.) |
