DJI FPV Air Units Bundle

  • $331.00
Quantity:
2 Pieces

$331.00
5 Pieces

$797.00



DJI FPV Air Units Bundle

The airborne side of the DJI FPV System is no less incredible than the goggles it's designed for. There is an impressive amount of technology crammed into this rugged aluminum housing. This unit is not only your FPV/HD Camera, 1080p 60fps / 720p 120fps DVR and Digital VTX in one, but if you combine it with the DJI FPV Remote Controller, it's also your RC receiver, with a 4 KM range! You're still welcome to use your trusy old RC Transmitter and RX with the DJI FPV System, but the DJI FPV Remote Controller ties the whole system together very perfectly, allowing users to remotely set parameters of the DJI FPV Goggles, the DJI Air Unit, and the DJI FPV Camera.

We carry two package deals for this amazing system:
The DJI FPV Experience Combo & Fly More Combo.

Features

Air Unit

  • 1080p 60fps / 720p 120fps DVR
  • Powerful DJI HDL FPV Transmission System
  • Embedded RC Receiver
  • Multi Antenna Technology
  • Durable Aluminum Housing
  • Maximum 8 Channels



Camera

  • 150° Ultra-Wide-Angle Lens
  • Three Picture Modes for Different Scenarios (Standard/Racing/LED)
  • Adjustable Brightness & Saturation



Specifications

  • Input Power 7.4-17.6 V, about 4-9 W
  • Operating Frequency: 5.725-5.850 GHz
  • Transmitter Power (EIRP) FCC/SRRC: <30 dBm;
  • CE: <14 dBm
  • Min. Latency (end-to-end) Low Latency Mode (720p/120fps): <28 ms
  • High Quality Mode (720p/60fps): <40 ms
  • Max. Transmission Distance FCC/SRRC: <4 km; CE: <0.7 km
  • Video Format MP4 (Video format: H.264; Audio format: ACC-LC)
  • I/O Interface USB-C, MMCX, 3-in-1 port, microSD card slot
  • Supported Flight Control System F3, F4, F7
  • Operating Temperature Range 32°to 104°F (0° to 40°C)
  • Weight: Air Unit (Camera included): 45.8 g
  • Air Unit Dimensions: 44×37.8×14.4mm
  • Camera Dimensions: 27.4×21.1×20.1mm
  • Coaxial Cable Length: 100mm



Channels Info FCC

  • Channels: 8
  • Channel 1: 5660
  • Channel 2: 5695
  • Channel 3: 5735
  • Channel 4: 5770
  • Channel 5: 5805
  • Channel 6: 5878
  • Channel 7: 5914
  • Channel 8: 5839



CE/SRRC

  • Channel 1: 5735
  • Channel 2: 5770
  • Channel 3: 5805
  • Channel 8: 5839



MIC

  • Channel 1: 5660
  • Channel 2: 5700
  • Channel 8: 5745



Camera

  • Sensor 1/3.2'' CMOS; Effective Pixels: 4 M
  • Lens 2.1 mm, f/2.1
  • Shutter Rolling shutter
  • ISO 100-25600
  • FOV 150°(D); 122°(H); 93°(V)
  • Dimension 22.1×21.1×20.1 mm
  • Weight 8.2 g

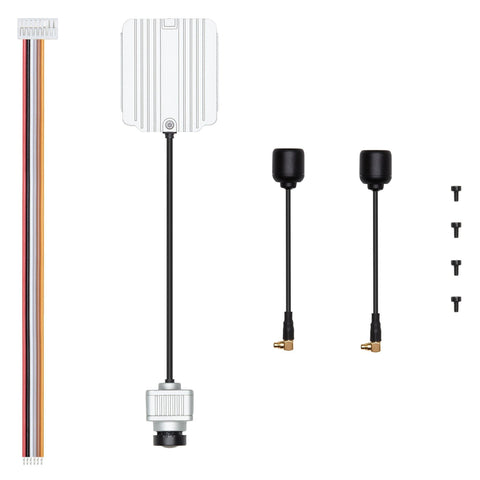

Each park Includes

  • 1x Camera
  • 1x Air Unit Module
  • 2x Air Unit Antenna (MMCX Elbow)
  • 1x Coaxial Cable
  • 1x Air Unit 3in1 Cable
