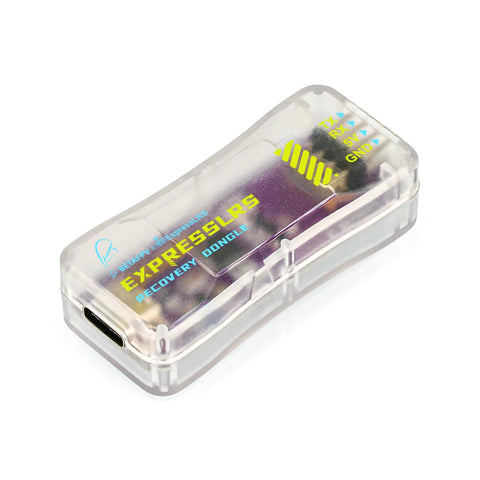

BetaFPV ExpressLRS Recovery Dongle ELRS Flashing Unbricked Tool

ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&ESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market such as ELRS Lite Receiver, ELRS Nano Receiver, ELRS Micro Receiver, and FPV goggles backpack. It will be a good choice to unbrick the ELRS receiver when failed in updating or flash firmware by UART.

Bullet Point

Unbrick and recover the ELRS receiver when having a failed update such as the missing bootloader.
Soldering Free! It features spring probe pins for more convenient use. Connecting it with the ELRS receiver directly does not need to solder.
ExpressLRS Recovery Dongle FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
Support many computer systems in the market like Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.

Specification

USB Interface: Type-C USB male connector
Operating Voltage: 5V.
Logic Voltage: 5V.
3.3V power supply output current: 400mA
Pins output method: 2*4P-2.54mm pin header
Serial baud rate: Up to 921600bps.
Support USB1.1, USB2.0
USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC

Know More About FTDI Module

ExpressLRS Recovery Dongle (FTDI Module) is mainly used to unbrick the ELRS receiver when having a failed update by Wifi upgrading or passthrough but also provides the UART way to upgrade the ELRS receiver or backpack. This FTDI module features spring probe pins and a connector for non-soldering use, which is more convenient for users. Besides, it is very durable and portable with a shell.

Diagram

Below picture is the diagram for the ExpressLRS Recovery Dongle.

FAQ

Please click the below link to know how to use the ExpressLRS Recovery Dongle. This module requires the driver for the Windows system and there is no need if you are using MAC or Linux.

How to use the ExpressLRS Recovery Dongle

Driver for Windows

Note: The package does not include the Type-C USB cable. Please make sure you have available one.
